Equal & Unequal Tee & Cross

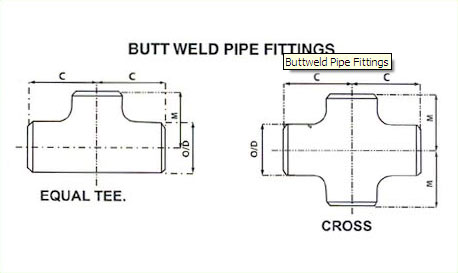

Equal & Unequal Tee & Cross

Technical Specifications

Nominal
Pipe Size (NPS)
Outside
Diameter
at Bevel (O/D)
Run 'C' Outlet 'M'
1/2''
21.3
25
25
3/4''
26.7
29
29
1''
33.4
38
38
1.1/4''
42.2
48
48
1.1/2''
48.3
57
57
2''
60.3
64
64
2.1/2''
73.0
76
76
3''
88.9
86
86
3.1/2''
101.6
95
95
4''
114.3
105
105
5''
141.3
124
124
6''
168.3
143
143
8''
219.1
178
178
10''
273.0
216
216
12''
323.8
254
254
14''
355.6
279
279
16''
406.4
305
305
18''
457.0
343
343
20''
508.0
381
381
22''
559.0
419
419
24''
610.0
432
432
26''
660.0
495
495
28''
711.0
521
521
30''
762.0
559
559
32''
813.0
597
597
34''
864.0
635
635
36''
914.0
673
673

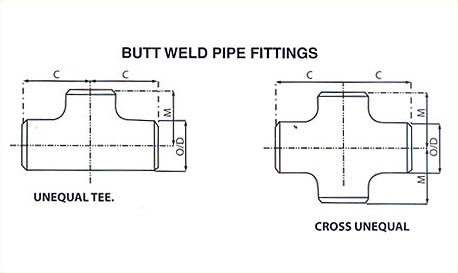

Unequal Tee & Cross Unequal

Unequal Tee
Technical Specifications

Nominal Pipe Size (NPS) Outside Diameter at Bevel (O/D)S Center-to-Center Nominal Pipe Size (NPS) Outside Diameter at Bevel (O/D) Center-to-Center
Run Outlet Run 'C' Outlet 'M' Run Outlet Run 'C' Outlet 'M'
½'' x 3/8
21.3
17.3
25
25
10'' x 8''
273.0
219.1
216
203
½'' x ¼''
21.3
13.7
25
25
10'' x 6''
273.0
168.3
216
194
10'' x 5''
273.0
141.3
216
191
¾'' x ½''
26.7
21.3
29
29
10'' x 4''
273.0
114.3
216
184
¾'' x 3/8''
26.7
17.3
29
29
12'' x 10''
323.8
273.0
254
241
1'' x ¾''
33.4
26.7
38
38
12'' x 8''
323.8
219.1
254
229
1'' x ½''
33.4
21.3
38
38
12'' x 6''
323.8
168.3
254
219
12'' x 5''
323.8
141.3
254
216
1.1/4'' x 1''
42.2
33.4
48
48
1.1/4'' x 3/4''
42.2
26.7
48
48
14'' x 12''
355.6
323.8
279
270
1.1/4 x ½''
42.2
21.3
48
48
14'' x 10''
355.6
273.0
279
257
14'' x 8''
355.6
219.1
279
248
1.1/2'' x 1.1/4''
48.3
42.2
57
57
14'' x 6''
355.6
168.3
279
238
1.1/2'' x 1''
48.3
33.4
57
57
1.1/2'' x ¾
48.3
26.7
57
57
16'' x 14''
406.4
355.6
305
305
1.1/2'' x 1/2''
48.3
21.3
57
57
16'' x 12''
406.4
323.8
305
295
16'' x 10''
406.4
273.0
305
283
2'' x 1.1/2''
60.3
48.3
64
60
16'' x 8''
406.4
219.1
305
273
2'' x 1.1/4''
60.3
42.2
64
57
16'' x 6''
406.4
168.3
305
264
2'' x 1''
60.3
33.4
64
51
2'' x 3/4''
60.3
26.7
64
44
18'' x 16''
457.0
406.4
343
330
18'' x 14''
457.0
355.6
343
330
2.1/2'' x 2''
73.0
60.3
76
70
18'' x 12''
457.0
323.8
343
321
2.1/2'' x 1.1/2''
73.0
48.3
76
67
18'' x 10''
457.0
273.0
343
308
2.1/2'' x 1.1/4''
73.0
42.2
76
64
18'' x 8''
457.0
219.1
343
298
2.1/2'' x 1''
73.0
33.4
76
57
20'' x 18''
508.0
457.0
381
368
3'' x 2.1/2''
88.9
73.0
86
83
20'' x 16''
508.0
406.4
381
356
3'' x 2''
88.9
60.3
86
76
20'' x 14''
508.0
355.6
381
356
3'' x 1.1/2''
88.9
48.3
86
73
20'' x 12''
508.0
323.8
381
346
3'' x 1.1/4''
88.9
42.2
86
70
20'' x 10''
508.0
273.0
381
333
20'' x 8''
508.0
219.1
381
324
3.1/2'' x 3''
101.6
88.9
95
92
3.1/2'' x 2.1/2''
101.6
73.0
95
89
22'' x 20''
559.0
508.0
419
406
3.1/2'' x 2''
101.6
60.3
95
83
22'' x 18''
559.0
457.0
419
394
3.1/2'' x 1.1/2''
101.6
48.3
95
79
22'' x 16''
559.0
406.4
419
381
22'' x 14''
559.0
355.6
419
381
4'' x 3.1/2''
114.3
101.6
105
102
22'' x 12''
559.0
323.8
419
371
4'' x 3''
114.3
88.9
105
98
22'' x 10''
559.0
273.0
419
359
4'' x 2.1/2''
114.3
73.0
105
95
4'' x 2''
114.3
60.3
105
89
24'' x 22''
610.0
559.0
432
432
4'' x 1.1/2''
114.3
48.3
105
86
24'' x 20''
610.0
508.0
432
432
24'' x 18''
610.0
457.0
432
419
5'' x 4''
141.3
114.3
124
117
24'' x 16''
610.0
406.4
432
406
5'' x 3.1/2''
141.3
101.6
124
114
24'' x 14''
610.0
355.6
432
406
5'' x 3''
141.3
88.9
124
111
24'' x 12''
610.0
323.8
432
397
5'' x 2.1/2''
141.3
73.0
124
108
24'' x 10''
610.0
273.0
432
384
5'' x 2''
141.3
60.3
124
105
26'' x 24''
660.0
610.0
495
483
6'' x 5''
168.3
141.3
143
137
26'' x 22''
660.0
559.0
495
470
6'' x 4''
168.3
114.3
143
130
26'' x 20''
660.0
508.0
495
457
6'' x 3.1/2''
168.3
101.6
143
127
26'' x 18''
660.0
457.0
495
444
6'' x 3''
168.3
88.9
143
124
26'' x 16''
660.0
406.4
495
432
6'' x 2.1/2''
168.3
73.0
143
121
26'' x 14''
660.0
355.6
495
432
26'' x 12''
660.0
323.8
495
422
8'' x 6''
219.1
168.3
178
168
8'' x 5''
219.1
141.3
178
162
28'' x 26''
711.0
660.0
521
521
8'' x 4''
219.1
114.3
178
156
28'' x 24''
711.0
610.0
521
508
8'' x 3.1/2''
219.1
101.6
178
152
28'' x 22''
711.0
559.0
521
495
28'' x 20''
711.0
508.0
521
483
