You are here : Home > Products > Seamless ERW Pipes & Tubes

Seamless ERW Pipes & Tubes


Seamless & Erw Pipes

The SS/CS/ALLOY STEEL seamless/ ERW pipes that we offer meet the demands of our esteemed clients. The products are manufactured using superior quality base material and low carbon steel procured form reliable vendors. These pipes are widely used in engineering purposes, fencing, scaffoldings, line piping and many more. The pipes are used for conveying fluids under extreme temperature in heat transfer process equipment such as boilers, heaters, heat exchangers, condensers and others.

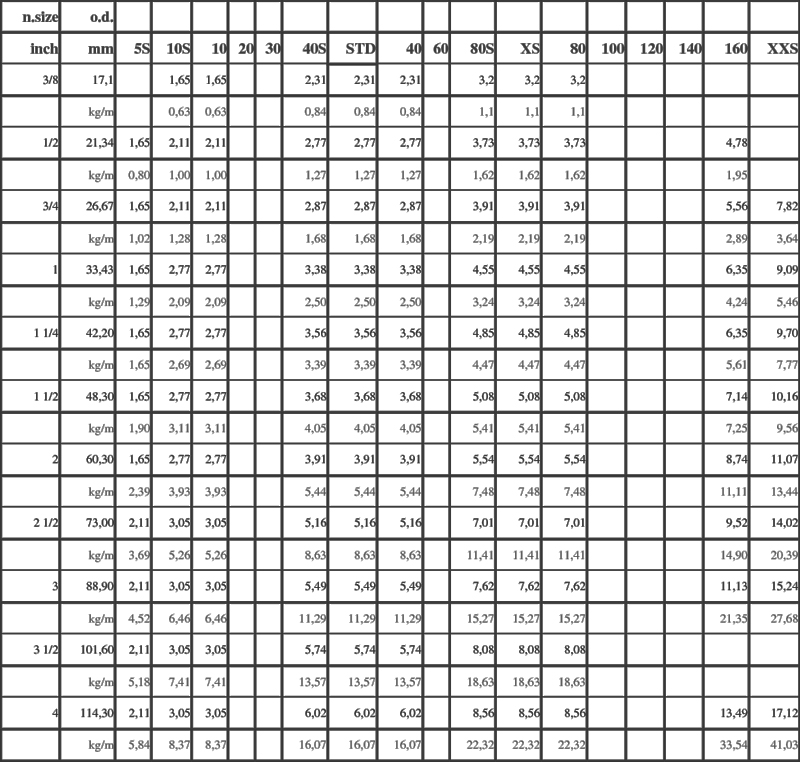

N.size o.d
Inch mm 5S 10S 10 20 30 40S STD 40 60 80S XS 80 100 120 140 160 XXS
3/8 17,1   1,65 1,65     2,31 2,31 2,31   3,2 3,2 3,2
  kg/m   0,63 0,63     0,84 0,84 0,84   1,1 1,1 1,1
1/2 21,34 1,64 2,11 2,11     2,77 2,77 2,77   3,73 3,73 3,73       4,78
  kg/m 0,80 1,00 1,00     1,27 1,27 1,27   1,62 1,62 1,62       1,95
3/4 26,67 1,65 2,11 2,11     2,87 2,87 2,87   3,91 3,91 3,91       5,56 7,82
  kg/m 1,02 1,28 1,28     1,68 1,68 1,68   2,19 2,19 2,19       2,89 3,64
1 33,43 1,65 2,77 2,77     3,38 3,38 3,38   4,55 4,55 4,55       6,35 9,09
  kg/m 1,29 2,09 2,09     2,50 2,50 2,50   3,24 3,24 3,24       4,24 5,46
1 1/4 42,20 1,65 2,77 2,77     3,56 3,56 3,56   4,85 4,85 4,85       6,35 9,70
  kg/m 1,65 2,69 2,69     3,39 3,39 3,39   4,47 4,47 4,47       5,61 7,77
1 1/2 48,30 1,65 2,77 2,77     3,68 3,68 3,68   5,08 5,08 5,08       7,14 10,16
  kg/m 1,90 3,11 3,11     4,05 4,05 4,05   5,41 5,41 5,41       7,25 9,56
2 60,30 1,65 2,77 2,77     3,91 3,91 3,91   5,54 5,54 5,54       8,74 11,07
  kg/m 2,39 3,93 3,93     5,44 5,44 5,44   7,48 7,48 7,48       11,11 13,44
2 1/2 73,00 2,11 3,05 3,05     5,16 5,16 5,16   7,01 7,01 7,01       9,52 14,02
  kg/m 3,69 5,26 5,26     8,63 8,63 8,63   11,41 11,41 11,41       14,90 20,39
3 88,90 2,11 3,05 3,05     5,49 5,49 5,49   7,62 7,62 7,62       11,13 15,24
  kg/m 4,52 6,46 6,46     11,29 11,29 11,29   15,27 15,27 15,27       21,35 27,68
3 1/2 101,60 2,11 3,05 3,05     5,74 5,74 5,74   8,08 8,08 8,08
  kg/m 5,18 7,41 7,41     13,57 13,57 13,57   18,63 18,63 18,63
4 114,30 2,11 3,05 3,05     6,02 6,02 6,02   8,56 8,56 8,56       13,49 17,12
  kg/m 5,84 8,37 8,37     16,07 16,07 16,07   22,32 22,32 22,32       33,54 14,03
